Long-distance Partnership Validated By On-site Inspection

What International Buyers Look For In Excavator Hardware

Cross-border machinery cooperation is never built merely on emails, product brochures or online videos. For heavy equipment buyers thousands of miles away from manufacturing bases, nothing carries more weight than a face-to-face factory inspection. Many overseas contractors invest substantial time and budget to travel to equipment manufacturers, because they need to verify every hardware detail before finalizing their purchasing decisions. Virtual displays can show static parameters, yet only physical inspection reveals the true build quality that will define machine performance on remote job sites. This is why experienced international buyers always reserve time for on-site verification, especially when sourcing excavators for high-intensity mining and infrastructure projects.

When international buyers travel long distances to inspect excavators, they do not only check appearance or basic running status. They come with clear evaluation standards formed from years of on-site construction experience. The first focus point is structural robustness. Buyers carefully examine the thickness of steel plates, welding quality and overall frame rigidity, knowing that weak structures cannot survive continuous vibration and impact on rugged job sites. Next comes the core power assembly. They pay attention to power output stability, heat dissipation performance and matching degree between engine and hydraulic system, which directly decides whether the machine can maintain steady operation under long-hour heavy load. Another critical factor is the maintainability of key components. Wise purchasers will observe the layout of service points, evaluating whether routine maintenance and part replacement can be finished quickly on site. Lastly, they test the adaptability for different attachments, as multi-scenario projects often require flexible switching between digging, breaking and other tasks.

1. Core Hardware & Performance Parameters of JG150S

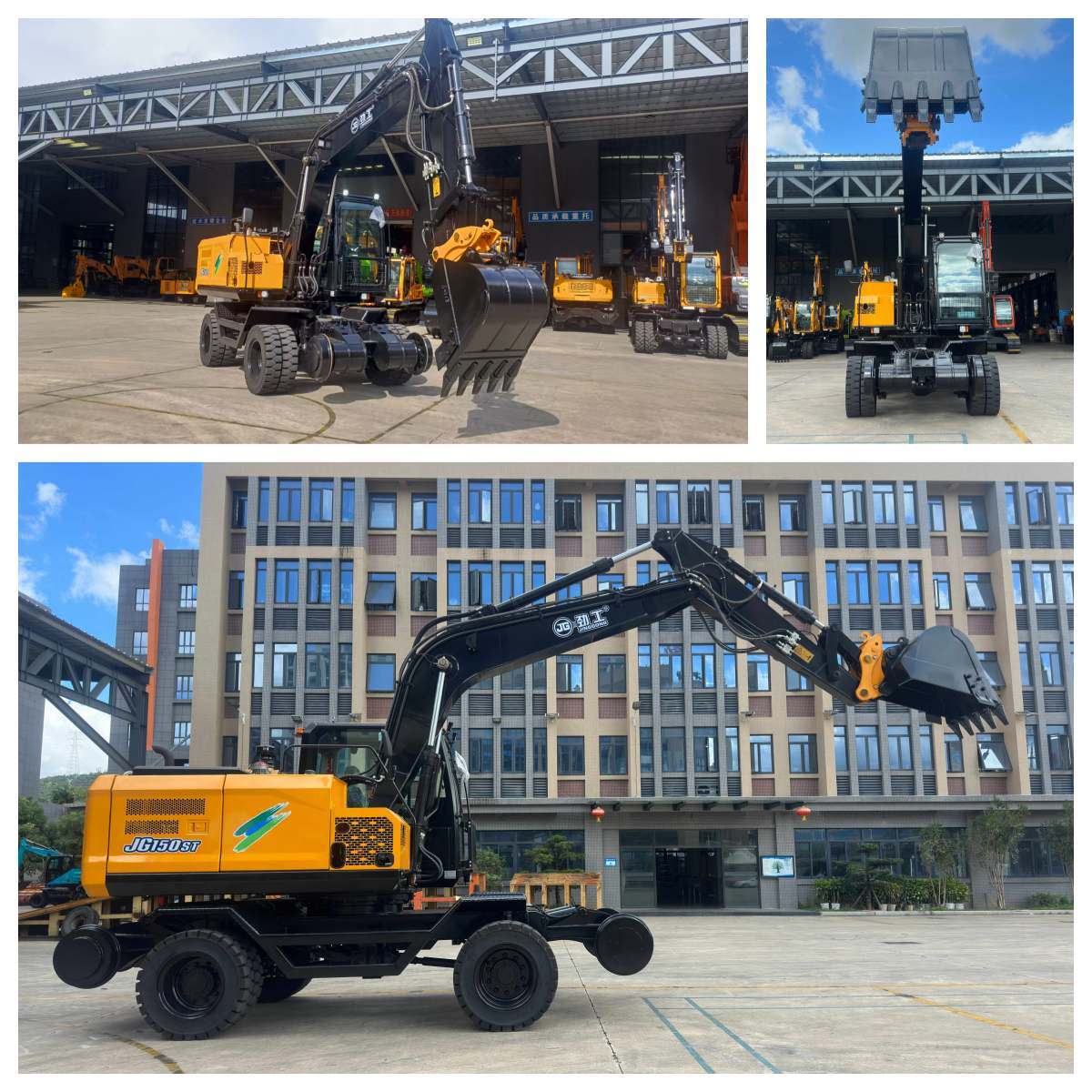

These practical hardware requirements are exactly what JINGGONG takes into full consideration during equipment development. JG150S excavator is engineered to meet the strict standards of global clients who conduct thorough factory inspections.

Working Range ：Boom length: 4200mm ；Arm length: 2000mm

Dimension Data ：Machine weight: 15000kg ；Transport dimensions (Lengthwidthheight): 9700*2500*3200mm ；Axle base: 2750mm ；Wheel base (front/rear): 1900mm ；Min. ground clearance: 310mm ；Back-end radius of gyration: 2250mm

Technical Specifications ： Environmental standards: National IV ；Engine brand: Cummins ；Rated power: 129KW, Rated speed: 2200r/min ； Angle of rotation: 360° ；Hydraulic system working pressure: 32Mpa ； Hydraulic system flow: 270L/min ； Pump type: Variable piston pump, 2*63ml/r ；Max. hauling force:76.5KN ；Walking speed: 25km/h ；Grade climbing ability: 58%/30° ； Fuel tank capacity:240L ；Hydraulic oil tank capacity:200L

Its reinforced main frame uses thickened steel plates and optimized welding processes to boost structural integrity against frequent impact and tough terrain. The matched Cummins engine and hydraulic system deliver consistent power output while controlling heat accumulation during nonstop heavy-duty work. Service access points are rationally arranged, allowing technicians to carry out daily inspection and component replacement without unnecessary disassembly. Meanwhile, JG150S reserves universal interfaces for multiple attachments, supporting diversified operation needs for mining auxiliary work, road foundation construction and other infrastructure projects. Every hardware design detail responds to the real concerns raised by international buyers in factory inspections.

2. Suitable Working Scenarios for JG150S

JG150S fits a wide spectrum of complex job environments. It performs reliably in mining auxiliary excavation tasks, where uneven ground and heavy impact are daily challenges. It also handles road and subgrade construction smoothly, capable of continuous earthmoving work. For small-to-medium infrastructure projects with frequently changed operation tasks, the machine’s flexible attachment compatibility brings greater convenience for contractors. Whether deployed in remote mountain zones or ordinary construction yards, JG150S maintains stable working performance and reduces unexpected downtime caused by structural failure or power fluctuation.

3. Real-world Verification: Returning Russian Client On-site Inspection

This logic of hardware verification can be perfectly seen in our recent cooperation with a client from Russia. This is his second visit to our factory for on-site inspection of JG150S. During this trip, the customer went through comprehensive checks covering frame structure, hydraulic performance and component assembly, cross-referencing every technical indicator listed above. Having gained satisfying operating experience from previous cooperation, he traveled again to validate machine quality before confirming the new order. This repeated on-site inspection represents the trust built between both parties. Long-distance cross-border partnership cannot be sealed by promises alone; solid hardware quality stands as the most reliable foundation for continuous collaboration.

Common Practical Questions

Q: Does JG150S support custom modification according to local site conditions?

A: Yes. We support targeted custom modifications for frame reinforcement, auxiliary hydraulic circuits and other parts. Please share your site conditions and operation requirements during inquiry, our engineering team will make corresponding configuration plans before production.

Q: What is the general lead time for JG150S after order confirmation?

A: Normal production lead time is about 45-60 working days. The exact delivery cycle will be confirmed according to order quantity and custom modification items.

Q: What kind of after-sales support can overseas customers obtain for JG150S?

A: We supply complete operation & maintenance manuals, remote technical guidance, and global spare-parts supply service. Core wearing parts can be delivered together with the machine.

Q: Can multiple different attachments be used on JG150S?

A: Yes. The reserved multi-function hydraulic interface supports various attachments such as breakers, grapples and screening buckets. Tell us your required tools, we can pre-adjust hydraulic parameters at factory.

Wrap-up

For global contractors seeking excavators that pass strict physical inspection and serve long-term project deployment, JG150S is worth your careful evaluation. Factory inspection is an important step for cross-border heavy-equipment procurement, helping buyers verify real-world performance beyond paper parameters.

If you want to receive full specification documents, technical data or customized project solutions, feel free to reach out to us.
