Solutions personnalisées pour l'entretien des voies

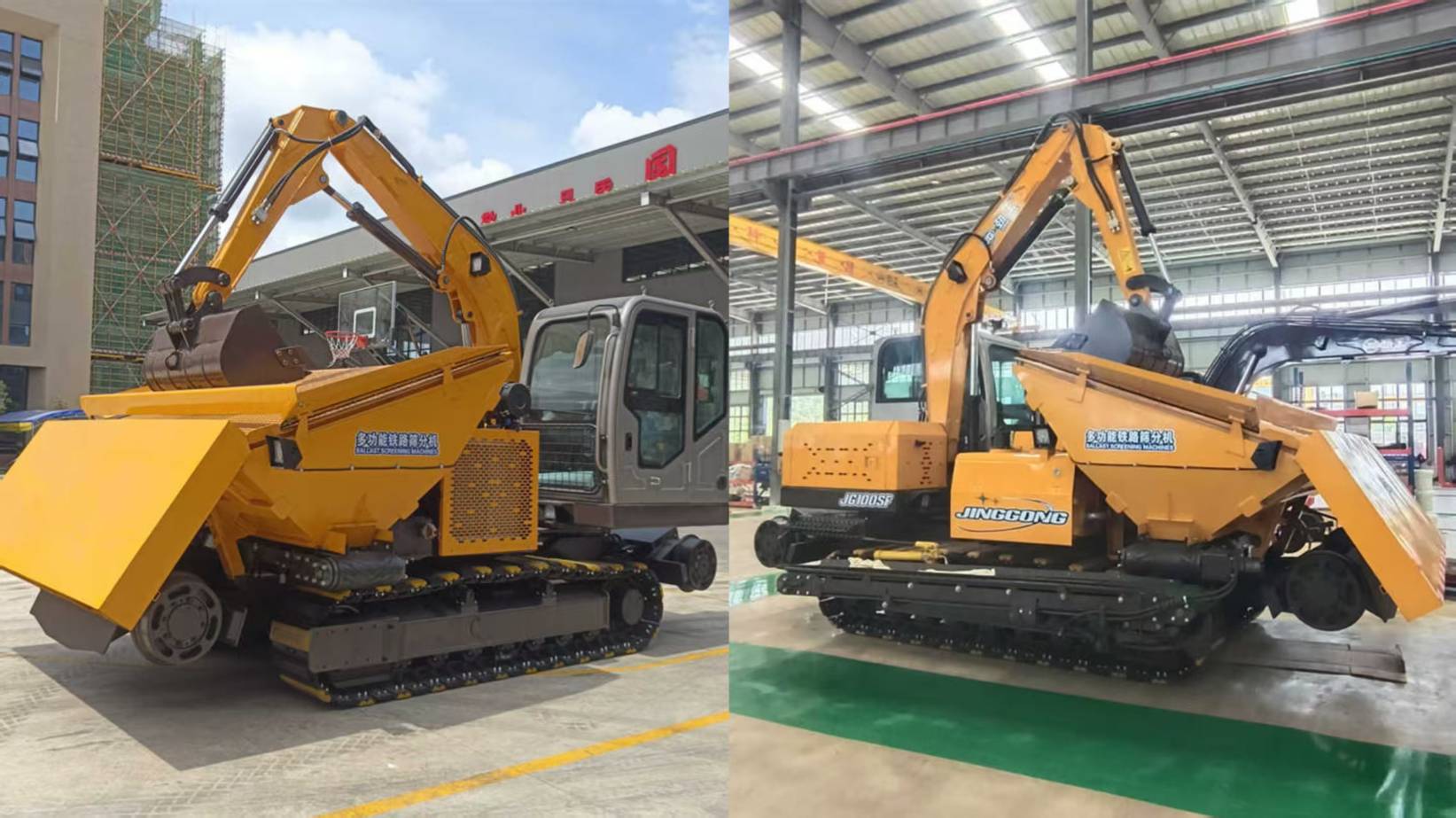

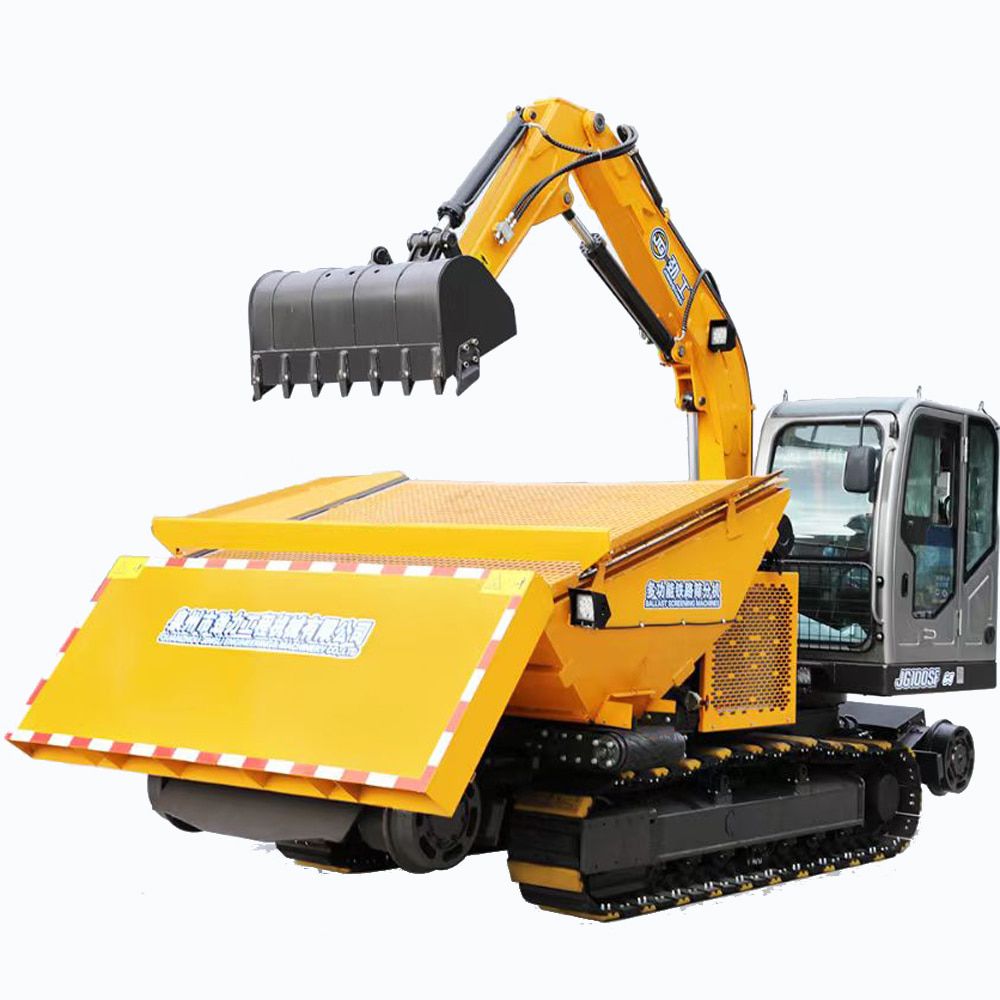

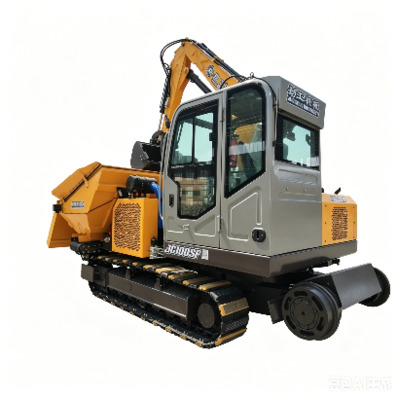

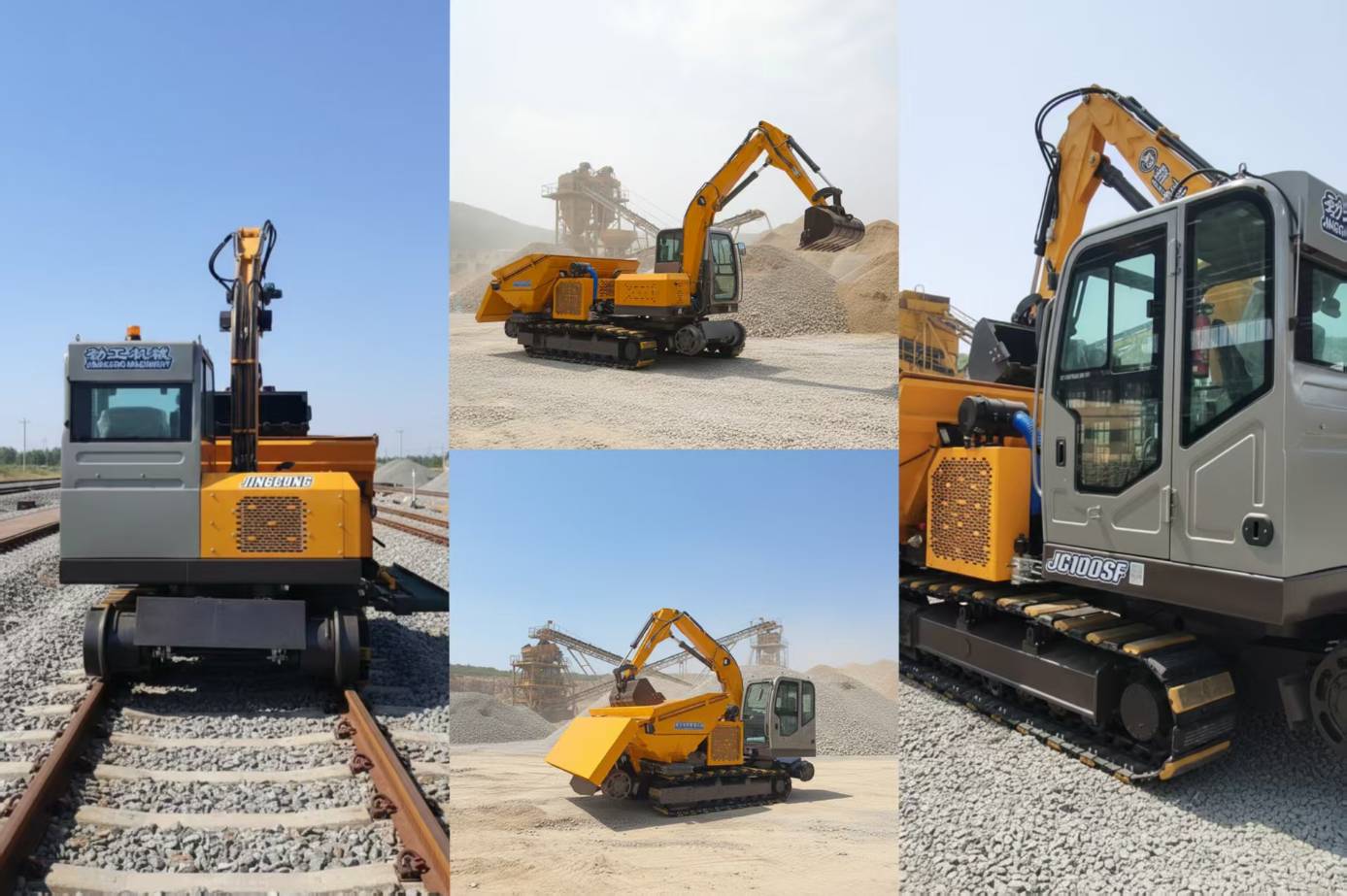

JG100SF 10-ton Railway Screening Machine
JG100SF 10-ton railway screening machine.Professional track cleaning solution! The integrated efficient screening system can quickly remove dirt and gravel impurities from the road bed, and the treatment capacity is up to 300m³/h. The modular design ADAPTS to the global standard gauge, and the automatic operation reduces the labor investment by 70%, which significantly improves the drainage and stability of the line. It is suitable for maintenance of heavy-duty railway, subway and high-speed line. The corrosion-resistant steel structure ensures the service life of more than 10 years.
Numéro d'article :
JG100SFCommande (MOQ) :
1Paiement :
FOBOrigine du produit :
CHINACouleur :
yellow/ orange/ blue（custonizable）Port d'expédition :
xiamenDélai de mise en œuvre :
30-60 daysPoids :
10000 kgEfficiency：The railway screening machine adopts advanced vibration technology and automatic control system, which can quickly deal with a large number of earth and rock materials and significantly shorten the railway construction and maintenance cycle.Accuracy：Equipped with adjustable screens and smart sensors, the equipment can accurately control the material particle size and output uniform sand and stone aggregates to meet global railway specifications.Reliable：Using high-strength steel and anti-corrosion coatings, the railway screening machine can still operate stably in wet, dusty or changeable terrain, with a mean time between failures of more than 5000 hours.
Performance parameter
| Max.digging reach | 5200mm |
| Max.digging depth | 2200mm |
| Max.digging force | 28KN |
| Maximum working height (adjustable Iimit） | <4350mm |
| Work radius of gyration | 1300mm |
| Machine weight | 10000kg |
| (Length*width*height) Transport dimensions | 6000*2800*2800mm |
| Track length | 2600(crawler track)/4400(high-speed) |
| Track gauge | 1570mm |
| Track shoe width | 400mm |
| Min ground clearance | 300mm |
| Environmental standards | EURO III |
| Engine brand | YUCHAI |
| Rated power | 55KW |
| Rated speed | 2200rpm |
| Angle of rotation | 360° |
| Applicable railway gauge | 1435mm（Can be customized on request） |
| Hydraulic system working pressure | 25MPa |
| Walking speed(High speed/low speed) | 15km/3.5km/h |
| Volume of bucket | 0.5m³ |
| Transmission speed of conveyor belt | 1-1.5m/s |
| Conveyor belt swing angle | 0-90° |
| Conveyor belt extension range | Swing both arms up and down 30 degrees at a distance of 2m |
| Frequencyof screen deaning plate vibration | 25-30Hz |
| Maimum suitable width of screen deaning plate | 2800mm |
| Clear sieve bucket capacity | ≤2.5m³ |
